The new ENVE Foundation AR40 features 40mm depth and 25mm internal width, optimised for 28-30mm tyres. Drawing on SES aero tech, it delivers versatile on/off-road performance with drag reduction exceeding its depth and price.
The new ENVE Foundation AR40 features 40mm depth and 25mm internal width, optimised for 28-30mm tyres. Drawing on SES aero tech, it delivers versatile on/off-road performance with drag reduction exceeding its depth and price.
Enve

ENVE Foundation AR40 Wheelset

£1,450.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Anxiety-free returns

Returns and exchanges

If you are not completely satisfied with your purchase, simply return the item or items to us in their original condition* within 30 days of receipt. You must notify us in writing within 14 working days of placing your order, by post or email of your intention to do this.

RETURN ADDRESS:

Returns Department
7hundred Ltd
68 Peascod Street
Windsor
SL4 1DE

We will issue a refund, credit or exchange the item for a different size / colour if preferred. Delivery charges are only refundable if you have canceled your entire order within the 7 day Cooling-Off Period or where the goods are faulty and a refund is made.

Store Credit is valid for 2 years and cannot be redeemed for cash at any point.

Where you require an exchange, for example, because a size has been incorrectly ordered, we will make a £4.95 charge or deduct the value from Reward Points where available, to cover re-delivery costs.
(Note: For larger items such as wheels, smart trainers, this charge may vary and you will be informed of the price before the item is sent).

Payment for this must be provided before we will send out the replacement item.

For European and International orders the charge will vary depending on the current cost of delivery to that country. For an accurate price, please contact us before returning your item.

Sorry, we cannot accept returns of books or software where any seals have been broken or working products that have been used.

Please note :

  • The item is your responsibility until it reaches us. For your own protection, we recommend that you send the parcel using a delivery service that insures you for the value of the goods.
  • The cost of returning the item to us is your responsibility.
  • The parcel can take up to 7 working days to be processed once received.

* Note: when trying on items of clothing, please ensure that you are not wearing perfume / aftershave or a deodorant which may leave a scent or marks on the item. In the case of cycling shorts please ensure that underwear is worn when first trying them on. The item(s) must be returned in its original packaging with all labels and tags and with all enclosed documentation.

We will be unable to accept the return of any item where there is evidence that these instructions have not been followed.

PLEASE NOTE: For large items such as bikes, trainers and associated large / bulky accessories and wheels, we reserve the right to charge a re-stocking fee of 10% to cover our administration costs. This re-stocking fee also applies to SPECIAL ORDERS for Q36.5 Clothing items where sizing or colours fall outside our in-store ranged collection.

Faulty Item

If the item you received is faulty, please contact us quoting your order number, your name and address, details of the product and the reason for return, and whether you require a refund or a replacement. We will then advise on how to proceed with the return. You have 30 days from receipt of the faulty item to notify us of your intent to return it and a further 30 days in which to do so.

Incorrect Item

If the item you received is not what you originally ordered, please contact us quoting your order number, your name and address, details of the product and the reason for return, and whether you require a refund or a replacement. We will then advise on how to proceed with the return.

All refunds will be given as soon as possible, and usually take the form of a refund transaction onto the card used for the original purchase. At the very latest we will refund your money within 28 days from the day we receive your returned item. In the case of incorrect ordering and undisclosed reasons for return, a credit or exchange may be issued and the customer will be expected to pay the return postage costs.

All returns must be accompanied by a completed returns form and a copy of the original invoice.



You can submit a returns form here:

Returns Form

ENVE Foundation AR40 Wheelset

Season:2026

Brand:Enve

Code:EN10011FAR4000

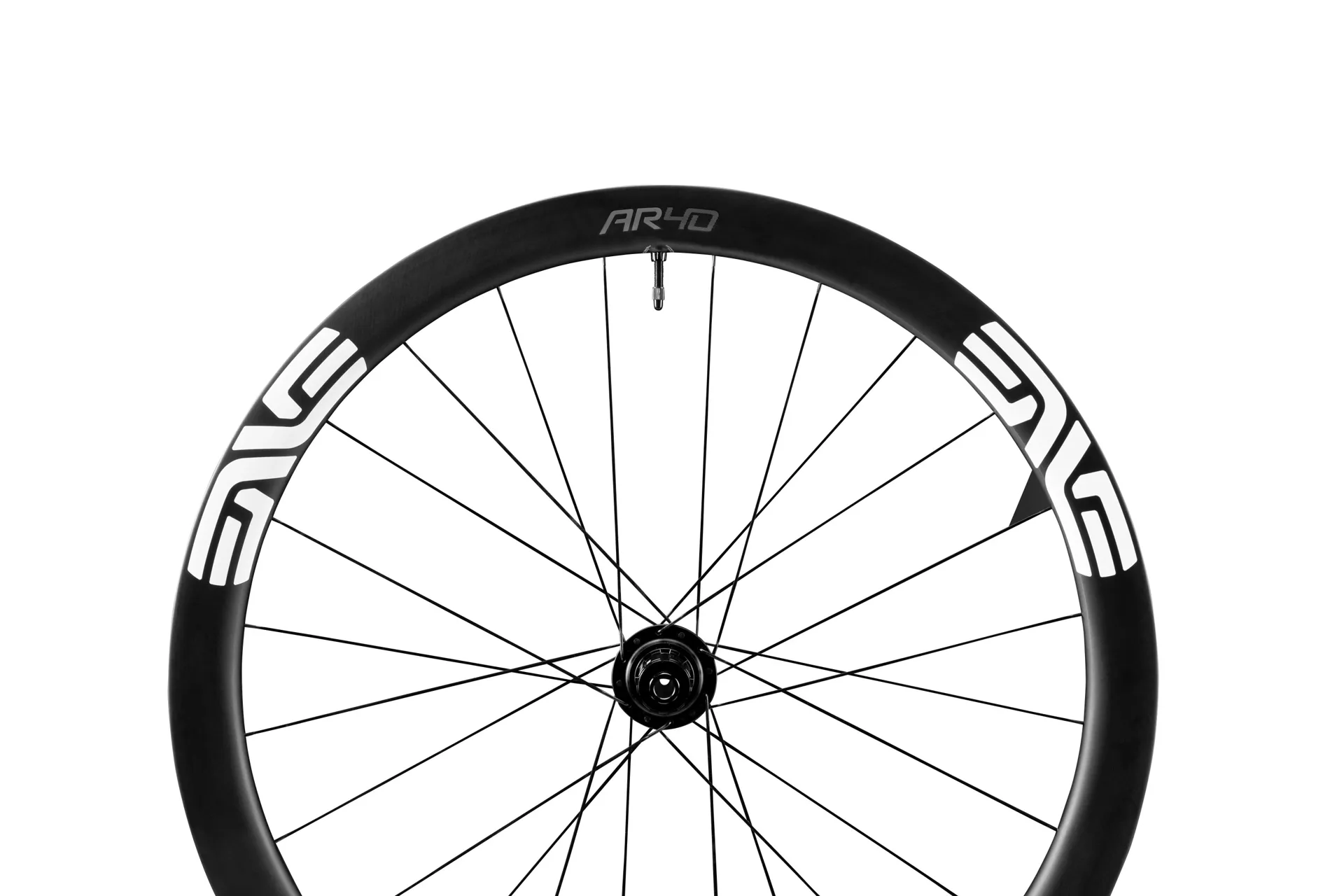

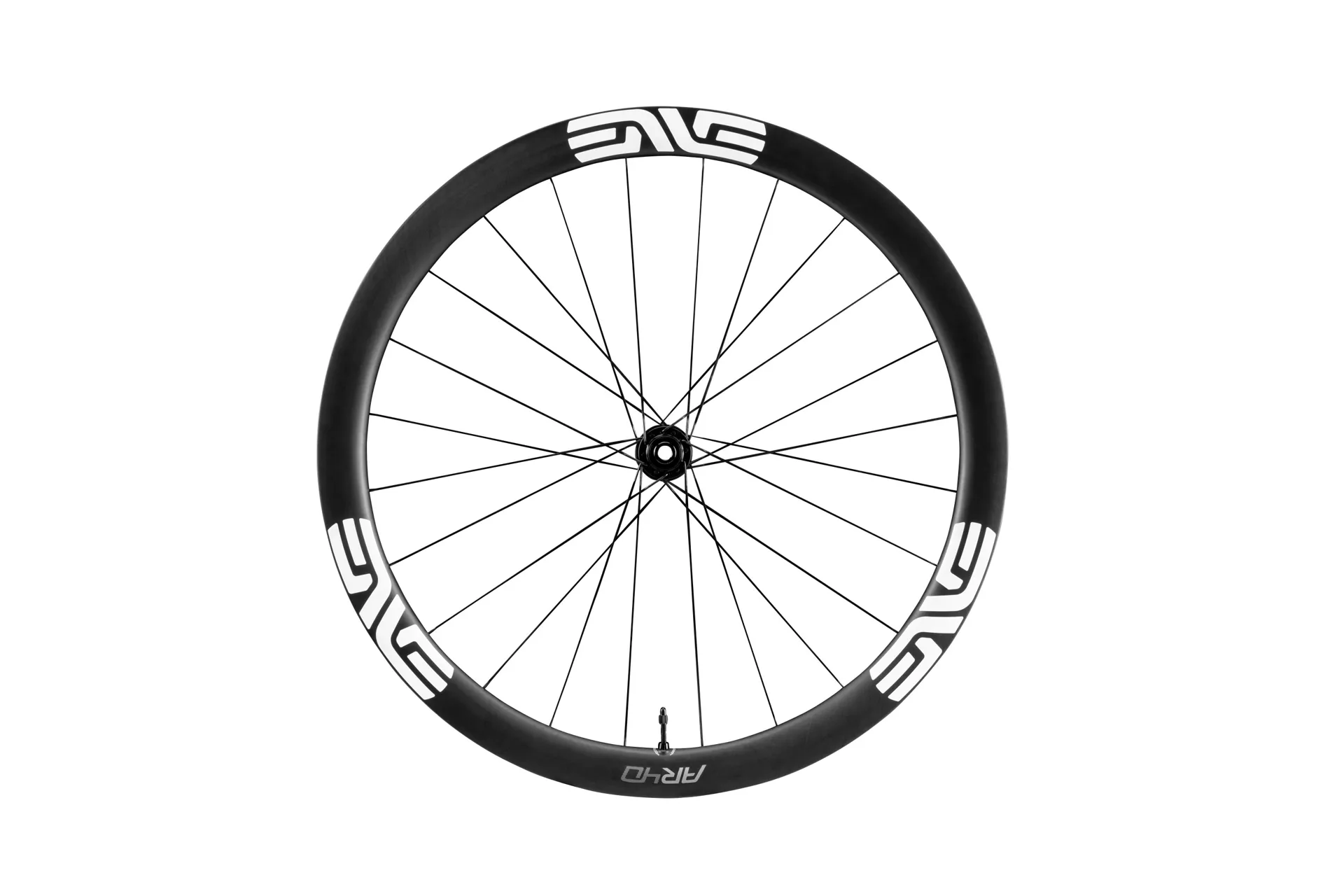

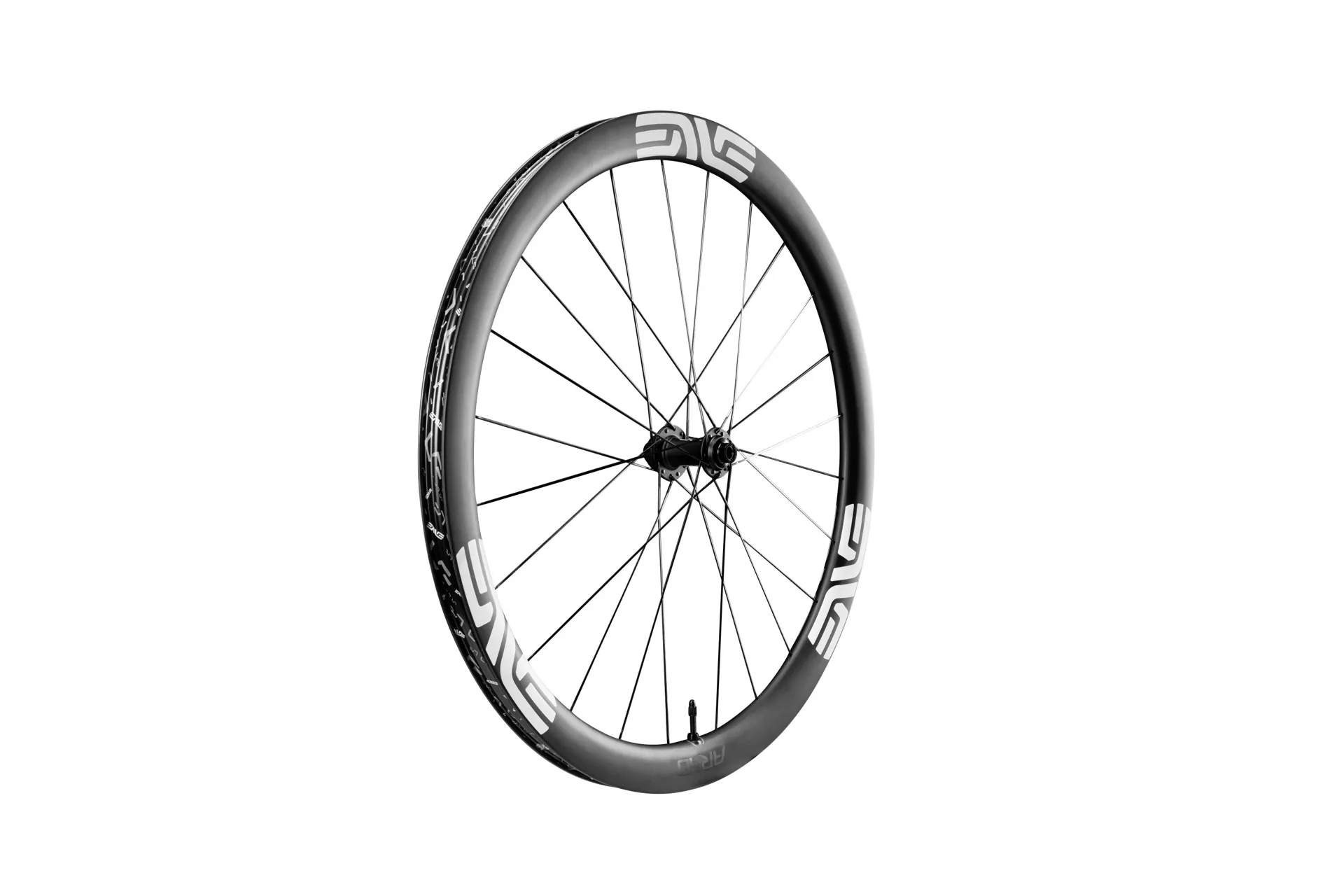

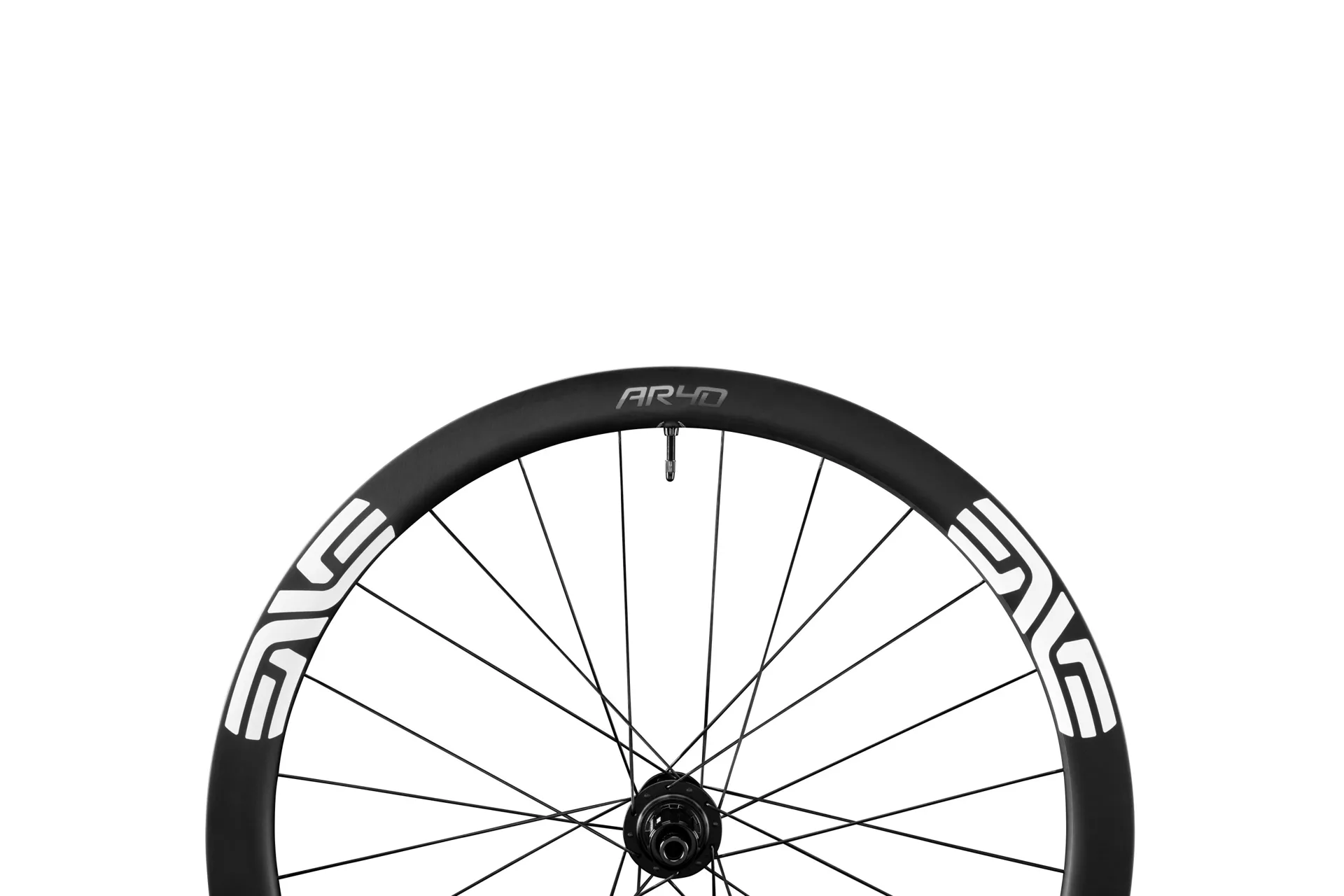

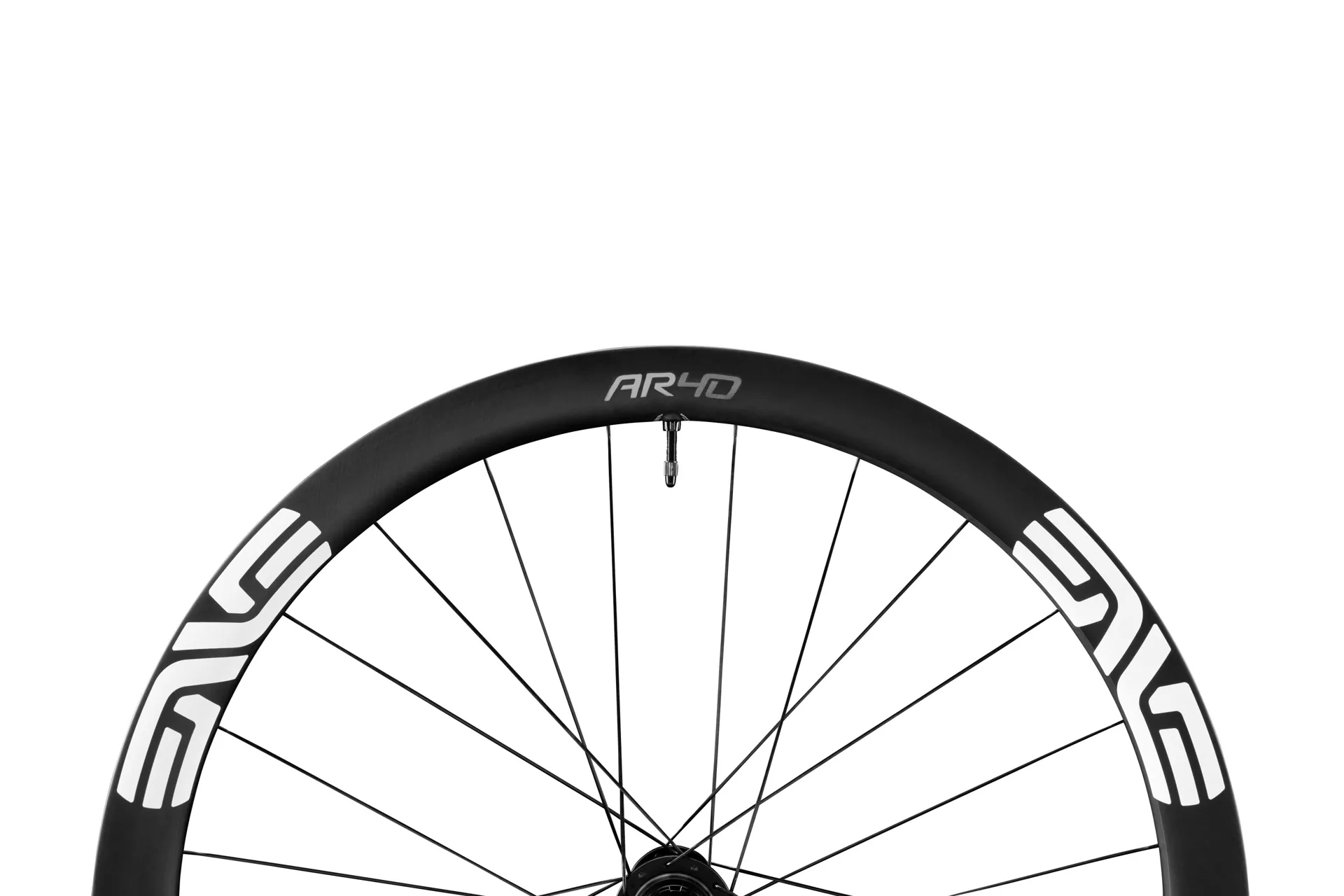

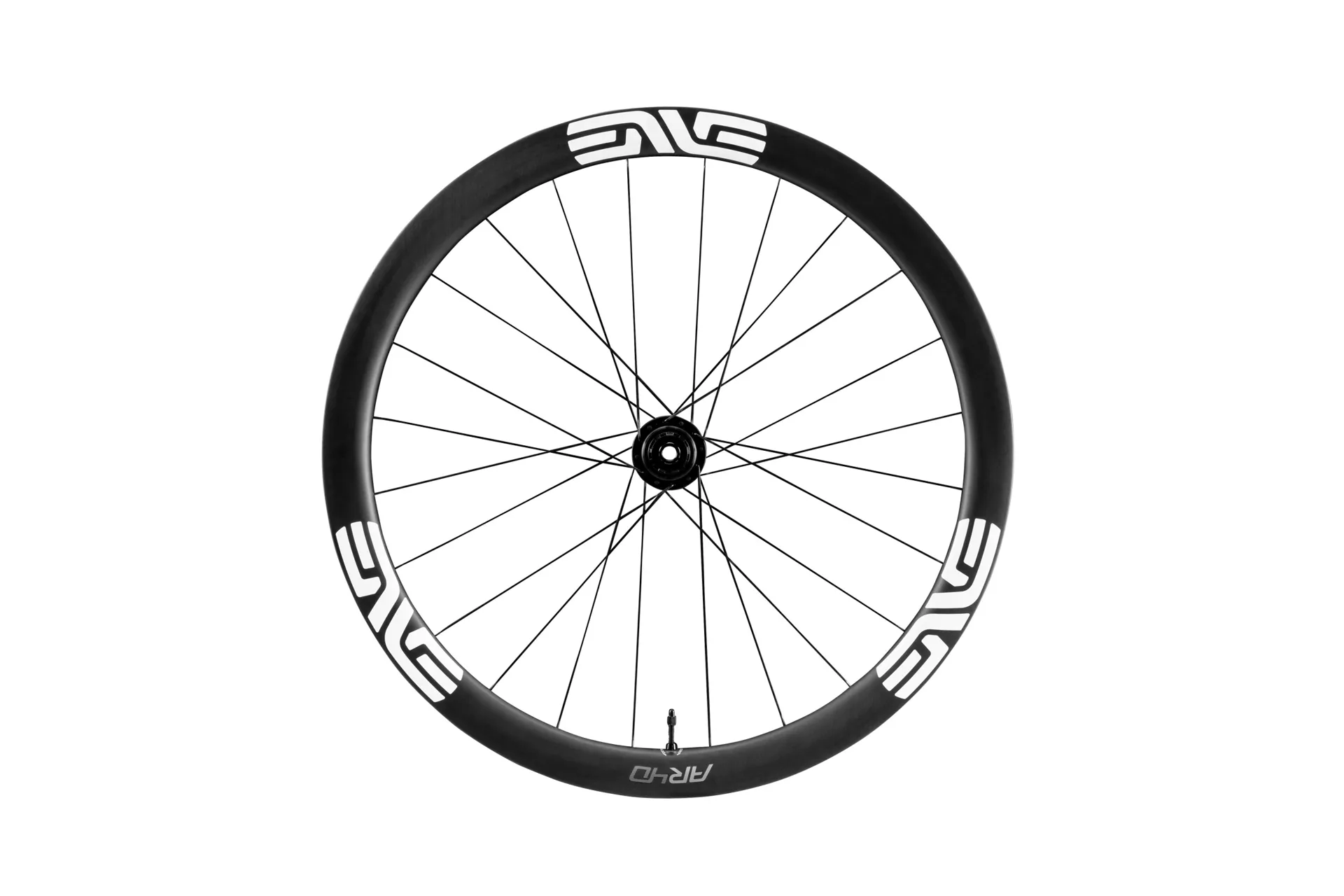

The ENVE AR40 is the latest addition to the Foundation wheel lineup. Featuring an aerodynamically optimised 40mm rim depth front and rear, with a 25mm internal rim width, the AR40 is designed to deliver ultimate versatility for the road rider and racer looking for performance on and off-road.

Borrowing from the company's proven SES rim design knowledge, the AR40 is aerodynamically optimised for 29mm - 30mm tyres and delivers drag reduction that punches well above its depth and price point. While designed primarily for on-road performance, the AR40 has been tested and qualified to ENVE’s gravel standards to ensure safety and speed for gravel riding and racing applications. The wide range of capabilities make the AR40 a perfect upgrade to any modern road bike, all-road bike, or gravel racing bike.

As with all modern wheels, the key focus is aerodynamics.
Aerodynamics are an unalienable right for road cyclists, triathletes, and now gravel riders and racers. However, not all aerodynamic performance is created equal and the best rim shapes allow for greater efficiency and confidence inspiring handling, regardless of the wind conditions. With nearly two decades of experience in developing the world’s fastest wheels, ENVE are uniquely qualified to deliver best-in-class aerodynamics to the Foundation level.

AR40 Aero


Like ENVE's SES wheel family, the Foundation Collection and the AR40 has been tested at the Mercedes-Benz Formula One Wind Tunnel to deliver best-in-class real world aero performance.

Like all ENVE’s rims, the AR40 was developed in-frame and tested at multiple speeds, 20 mph/32kph for realistic non-racer comparability, and 30mph/48kph. This testing, while more time consuming and costly, ensures that the AR40 delivers a performance advantage to riders of all abilities. As you can see, the AR40 delivers greater real world aero advantage than deeper wheels of comparable cost.


Real World Aero

The AR40 are quintessentialy ENVE and employ much of the technology used in the company's SES range. One of the defining manufacturing processes that immediately set ENVE apart is the use of their patented molded spoke hole. Rather than forming the carbon rim and then drilling the spoke holes, Enve developed a molding process that avoids drilling altogether. By doing so, Enve rims benefit from the inherent strength of long runs of unbroken carbon fibres, allowing for higher tension on spokes, less liklihood of spoke pull-through and subsequently, stiffer wheels that deliver your power more efficiently and flex less - eliminating the associated stresses. In addition, the process yields a lighter rim for the same strength.

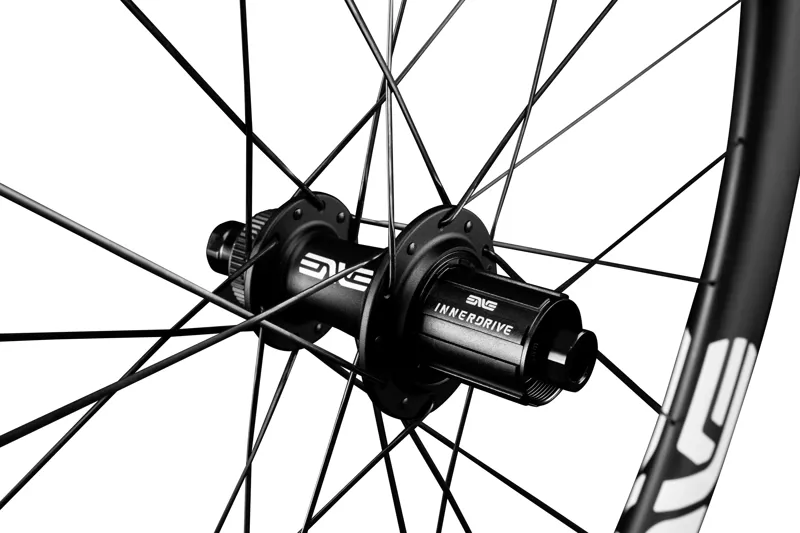

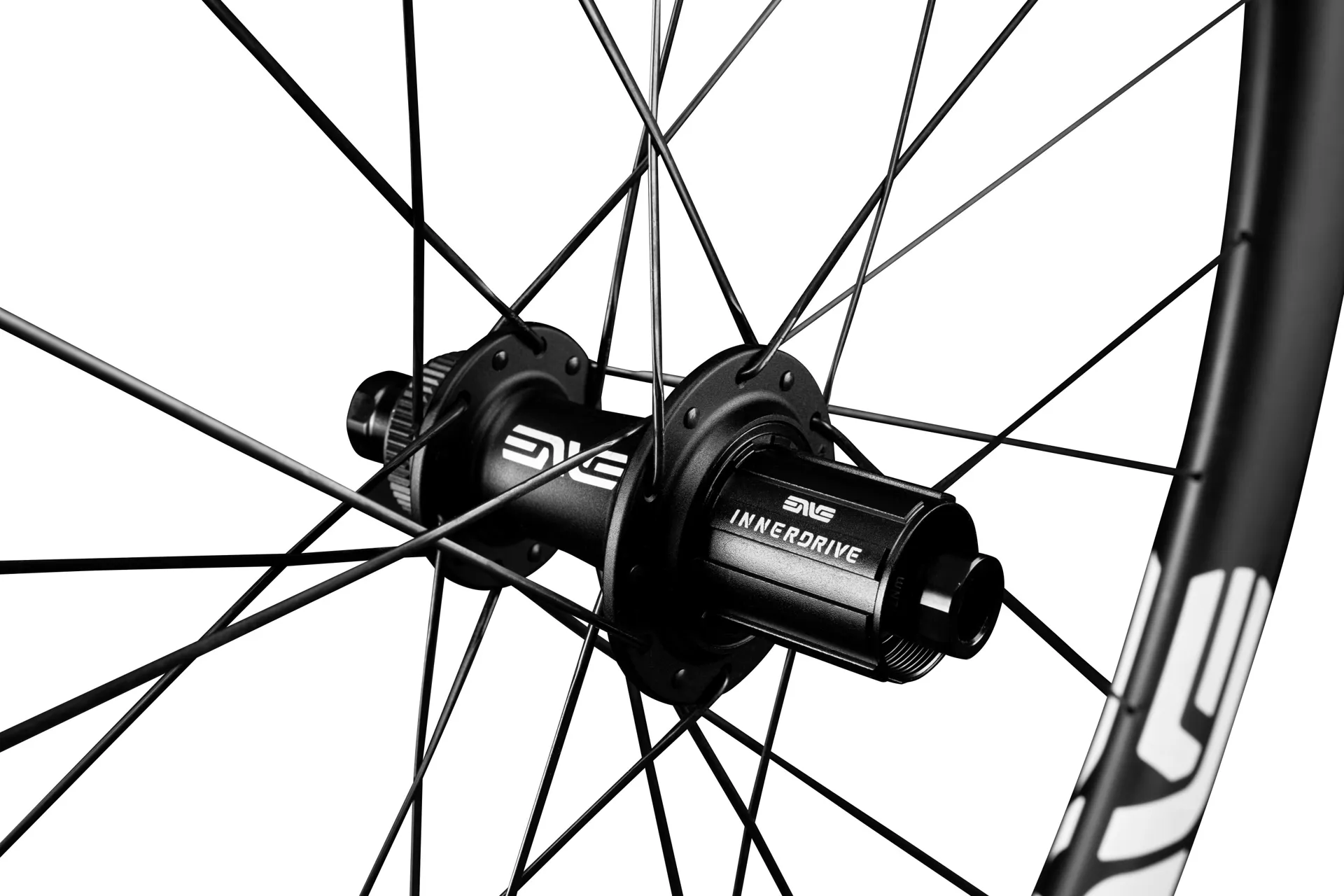

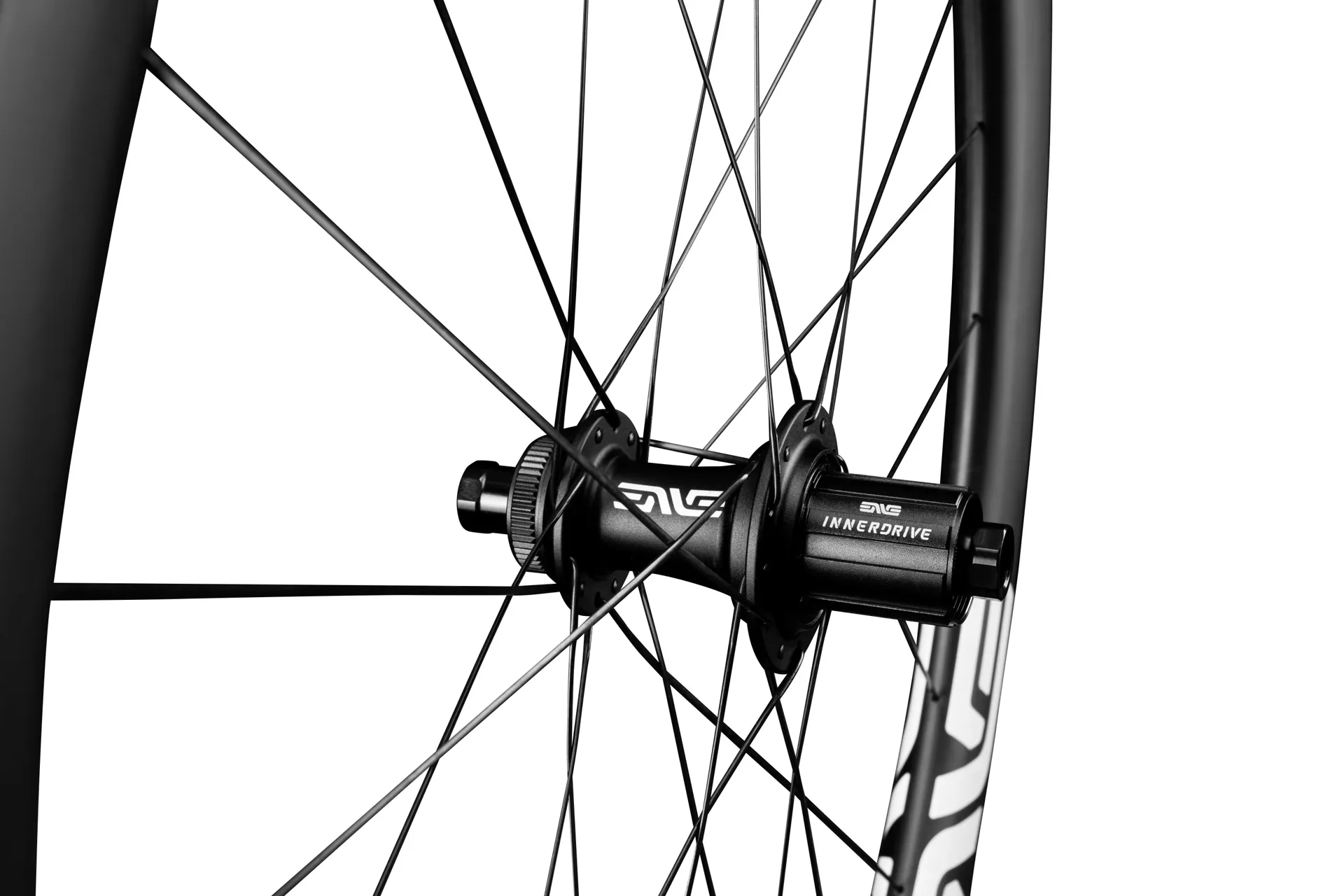

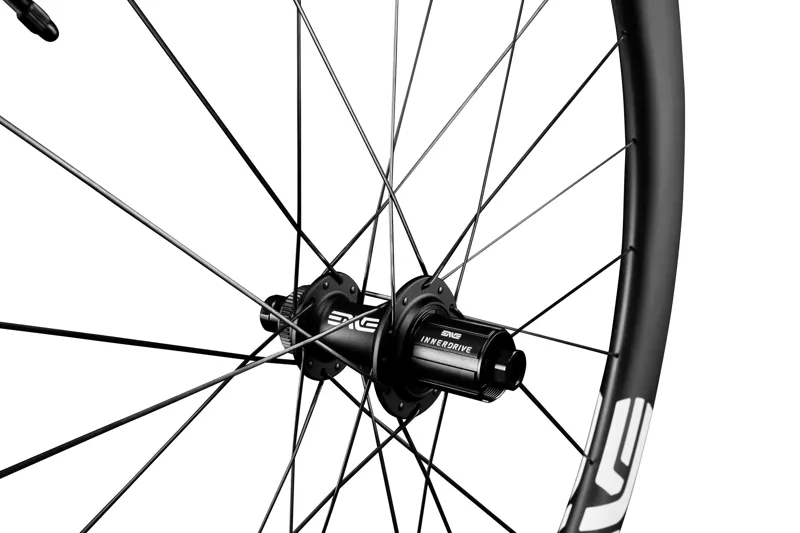

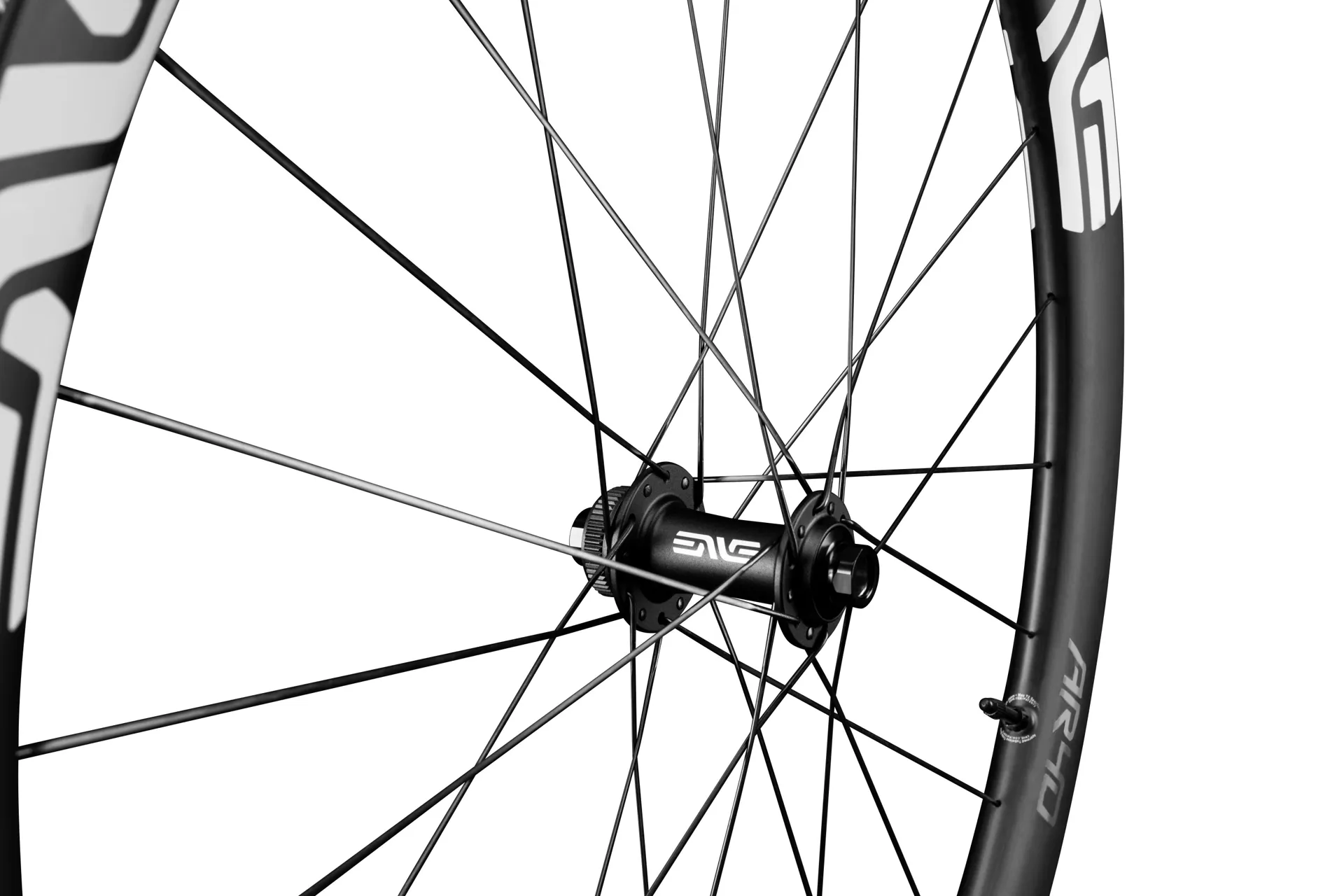

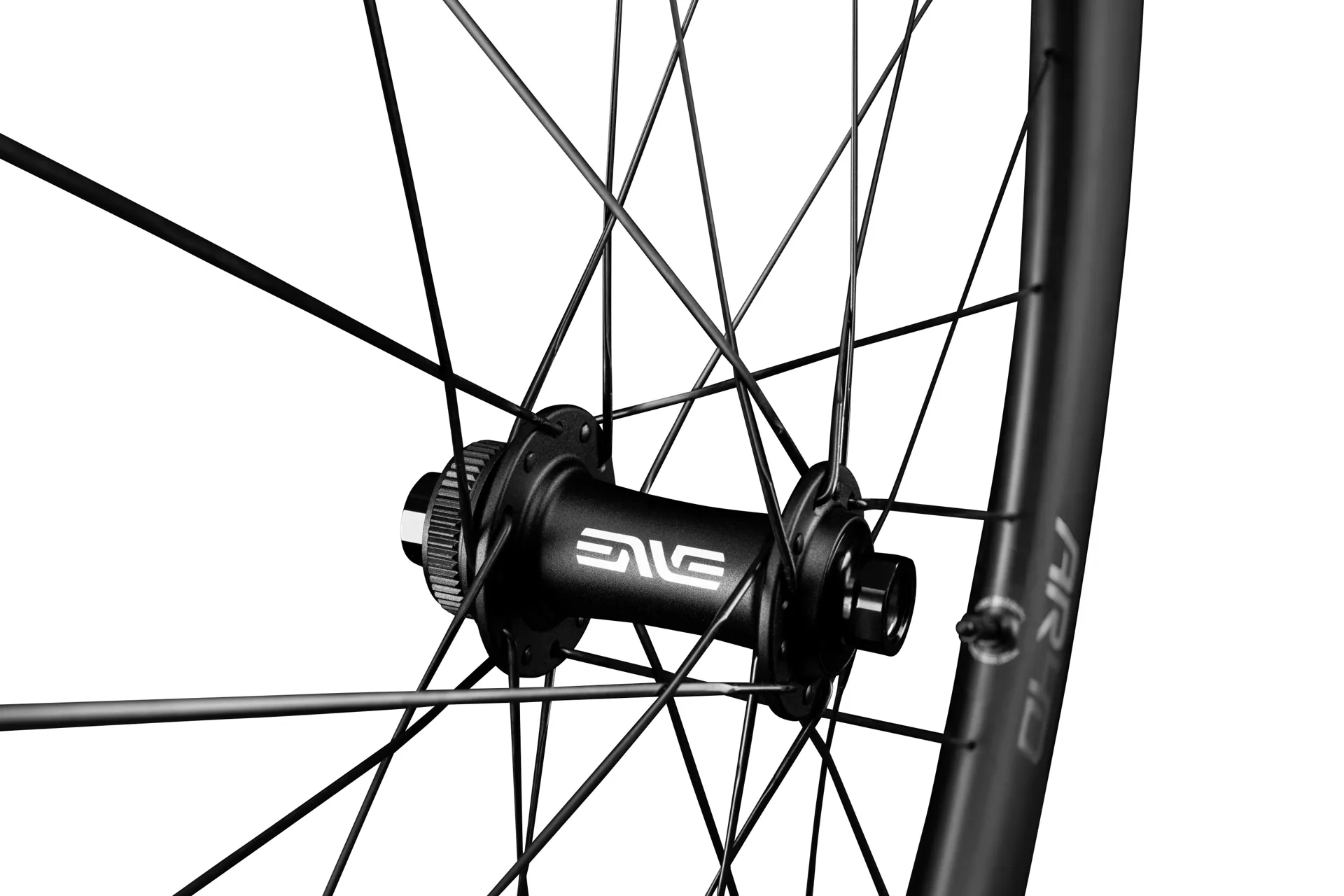

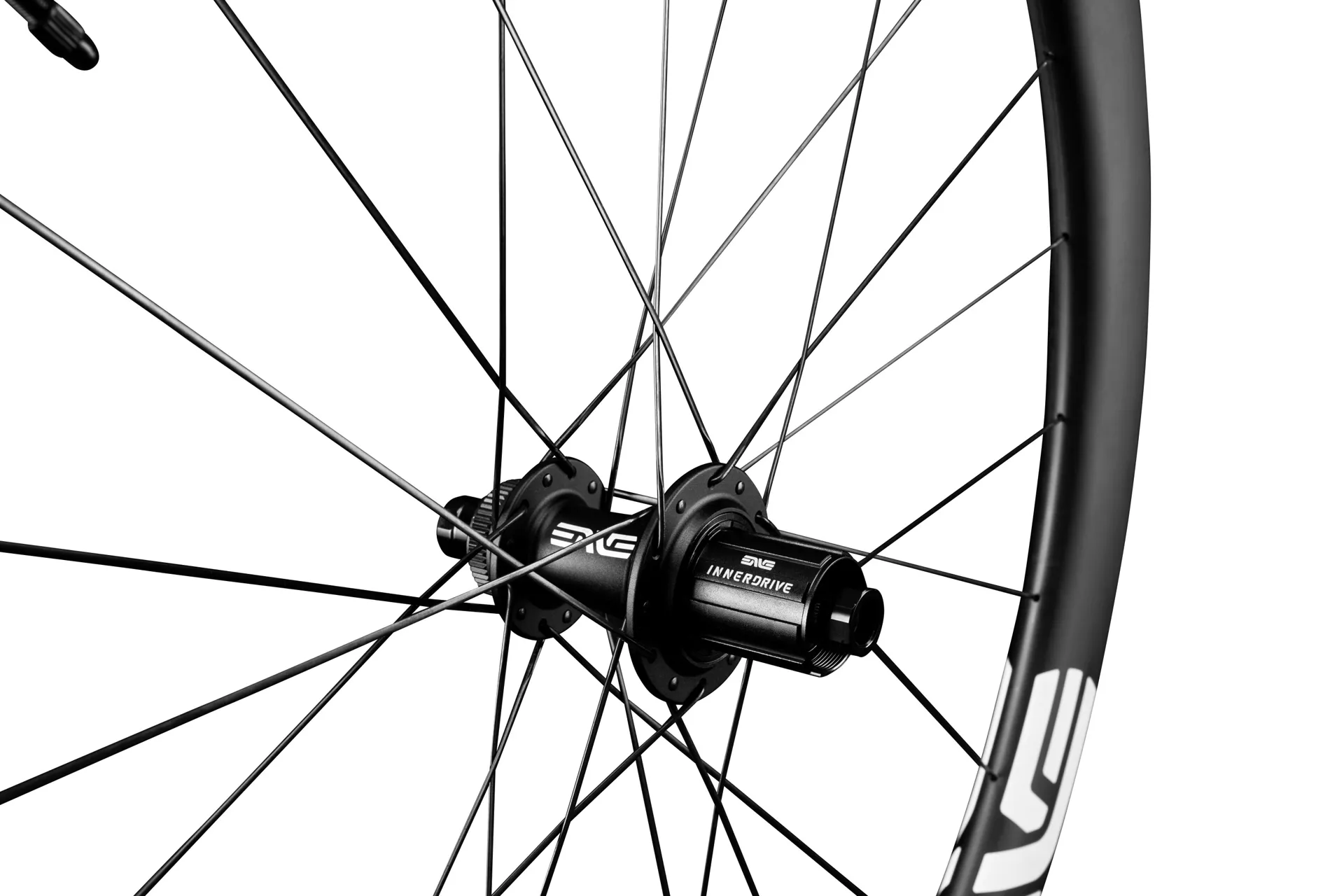

The AR40 rims are manufactured in the US and are built by hand in the UK in order to maintain the exacting quality standards that they are renowned for. The Rims are laced onto Enve's new INNERDRIVE Foundation hub. The 24 hole hubs (front and rear) feature oversized steel ratchets, positioned inboard and over the bearings reducing stress on the axle and bearings while ensuring positive and reliable engagement.

Additional benefits are a 100% ENVE designed oversized 42mm ratchet drive system, longer bearing life through less axle stress and subsequent bearing drag. Enve's 'Perfect Preload' delivers automatic preload adjustment that helps to contribute to the hub's low maintenance & easy serviceability

As with other Enve Wide Hookless Bead rims, the Foundation AR40 benefit from the wider element in the rim profile that dissipates impact energy and reduces the likelihood of pinch flatting your tubed or tubeless tyres. In combination with the dedicated Tubeless construction, the AR40 wheels offer all the benefits of the tech - optimised. Low rolling resistance from the lack of tube-tyre interface; the riders choice of pressure to maximise comfort, traction, and rolling efficiency - which combines with the hookless bead to deliver safer, more reliable, and ultimately proper tyre fitment.

The AR40 is a versatile all-road wheel that derives much of its tech from ENVE's premium wheel lines while delivering authentic ENVE ride quality, aerodynamics, and reliability at an accessible price point.

Technical Information

Wheel Weight
F: 690g
R: 825g

Wheelset Weight
1515g (Includes Tape and Valves- HG Freehub)

Effective Rim Diameter (ERD)
579mm I+/- 3mm)

Internal Rim Width
25mm

Sidewall Width
3.6mm

Pinch Flat Technology
Wide Hookless Bead

Hole Count
24h

Depth
40mm

Tubeless Tape Width
29mm

Tubeless Valve Length
61mm

Spokes
Sapim CX-RAY J-Bend

Hub
ENVE InnerDrive - Foundation

Recommended Tyre Size
27-50mm

Minimum Tyre Size
27mm
*Tyre must be Tubeless and listed as "Approved/Recommended" on ENVE's Tyre Compatibility Page.*

Maximum Tyre Pressure for minimum Tyre width (psi I bar)
80 psi

Spoke Length (INNERDRIVE Foundation Hubs)
F: 278/280mm
R: 274/280mm

Nipples
Alpina Nylock Brass

Spoke Tension
120kgf

Brake Type
Centerlock

Sizing Information
AR40 RIM SPECIFICATIONS

PRODUCT SPECS

• 425g Rim Weight (+/-3%)

• 1500g Wheelset Weight (+/-3%)

• Patented Molded Spoke Hole technology

• Internal spoke holes

• Tubeless Compatible

• 25mm Internal Width

• 40mm Depth

• 3.6mm Hook Width – Wide Hookless Bead

AR40 Rim Spec
