Princeton CarbonWorks Wheels

Princeton CarbonWorks is a US-built carbon wheel manufacturer defined by a tightly integrated set of engineering decisions, each of which feeds into the others. The brand doesn't compete on dozens of small refinements; it commits hard to three core technologies — the sinusoidal wave rim profile, Radially Staggered Lacing, and the holeless tubeless tyre bed — and builds every Evolution-platform wheel around them. To understand the lineup, it's worth understanding these technologies first, because they explain not only how Princeton wheels behave, but why the brand has stayed structurally narrow rather than expanding into mass-market tiers.

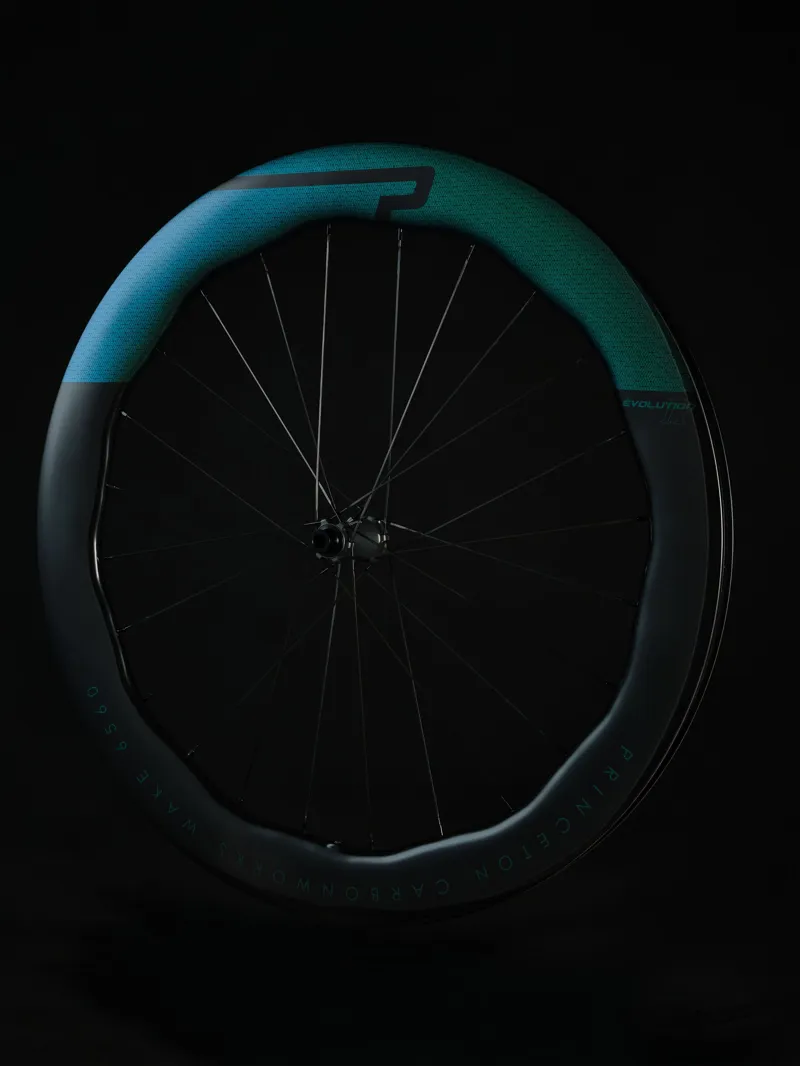

Princeton's defining feature. Every Evolution-platform rim varies its depth between a minimum and maximum value around the circumference, in a smooth sinusoidal wave pattern. The numbers in each model name encode this directly: a "6560" rim is 65mm at its deep points and 60mm at its shallow points, smoothly varying between the two. There are 24 peaks and 24 troughs around the rim, corresponding to spoke locations.

The aerodynamic argument is that the constantly varying depth disrupts the laminar boundary layer that builds up on the surface of a uniform-depth rim — similar in principle to the dimples on a golf ball, but at much larger scale. The structural argument is that the deep points sit exactly where the spokes attach, providing maximum stiffness at the highest-stress locations, while the shallow points reduce material (and weight) where stress is lowest. The crosswind-handling argument is that the wave breaks up the large continuous sail area of a deep uniform rim, making the wheel less prone to sudden gusts catching it broadside.

Whether all three claims hold up against the best uniform-depth competitors like ENVE is debated in independent wind-tunnel testing. The brand's consistency of execution — and the fact that pro teams sponsored by Princeton continue to choose these wheels in race conditions — suggests at minimum that the wave doesn't cost performance, and may add real value in specific yaw conditions.

This is the technology that makes the wave profile do more than just look distinctive. RSL is Princeton's patented spoke lacing system that pairs the wave rim profile with an asymmetric spoke pattern, deliberately matching different rim depths to different spoke positions to equalise spoke tension and bracing angles across the wheel.

To understand why this matters, you need to understand a structural problem inherent to modern disc-brake wheels. On a disc-brake rear wheel, the drive-side spokes (which transmit pedalling torque) need to be much tighter than the non-drive-side spokes — typically 2x to 2.5x the tension. The same is true on the front wheel for the disc-rotor side versus the non-rotor side. This tension imbalance happens because the hub flanges sit asymmetrically: the cassette and the disc rotor each occupy space on their side, pushing the spoke flanges off-centre. The result is a wheel that's mechanically uneven — the high-tension side flexes differently from the low-tension side, the bracing angles are unequal, and the wheel is harder to keep true over time. Most wheel builders manage this with traditional cross-lacing patterns, but it remains the single biggest structural compromise in modern disc-brake wheel design.

RSL addresses this by using the wave rim profile itself to mechanically equalise the spoke geometry. The deeper rim sections (the wave peaks) are attached to the higher-tension spokes — drive-side rear spokes, disc-side front spokes — and the shallower rim sections (the troughs) are attached to the lower-tension spokes (non-drive side rear, non-disc side front). Because the deeper rim section places the spoke nipple further from the hub, the spoke length is shorter on that side, and the bracing angle — the angle at which the spoke meets the hub — is flatter. The flatter bracing angle on the high-tension side, combined with the steeper bracing angle on the low-tension side, balances the geometry. The two sides now experience more similar effective tensions and pulling forces, even though the absolute tensions remain different.

The practical benefits are threefold:

RSL is patented to Princeton CarbonWorks and is present in every Evolution-platform wheel: the ALTA 3532, GRIT 4540, PEAK 4550, DUAL 5550, WAKE 6560 EVO II, and MACH 7580. The technology is one of the harder-to-copy features of the Princeton lineup, because it requires the wave rim profile to function — competitors building uniform-depth rims can't replicate the asymmetric depth-to-tension matching, even if they wanted to.

Every Evolution rim uses a non-drilled internal tyre bed. The spokes attach via internal nipples to the outer wall of the rim cavity, leaving the inside of the rim (where the tyre seats) completely unbroken. The practical benefit is that tubeless setup requires no rim tape — sealant can't escape through nipple holes because there are none. Setup is faster, more reliable, and sealant longevity improves because there's less surface area for air loss. It also reduces total rim mass slightly versus a traditional drilled rim that needs sealing tape.

All current wheels (except the BLUR disc and MACH TSV2 tri-spoke, which use different platforms appropriate to their shapes) are built on the EVOLUTION carbon layup — Princeton's refined second-generation construction that emphasises lower rim weight without sacrificing impact resistance. The layup is paired with the holeless bed and the wave profile to form a complete platform, which Princeton then varies by depth to produce each model in the road and gravel lineup.

With the technologies above as context, here's how each model fits in.

ALTA 3532 EVO — The ultralight climber. Depth waves between 32mm and 35mm, 348g rim weight, 21 mm internal width, claimed wheelset weight from 1,094 g (clincher/tubeless) or 950 g (tubular) in the lightest Tactic build. RSL and the wave profile are present despite the shallow depth, giving the ALTA stiffness and structural balance unusual for a sub-1,100g wheel. For climbers, hill climb events, and mountainous racing where rotational mass matters most.

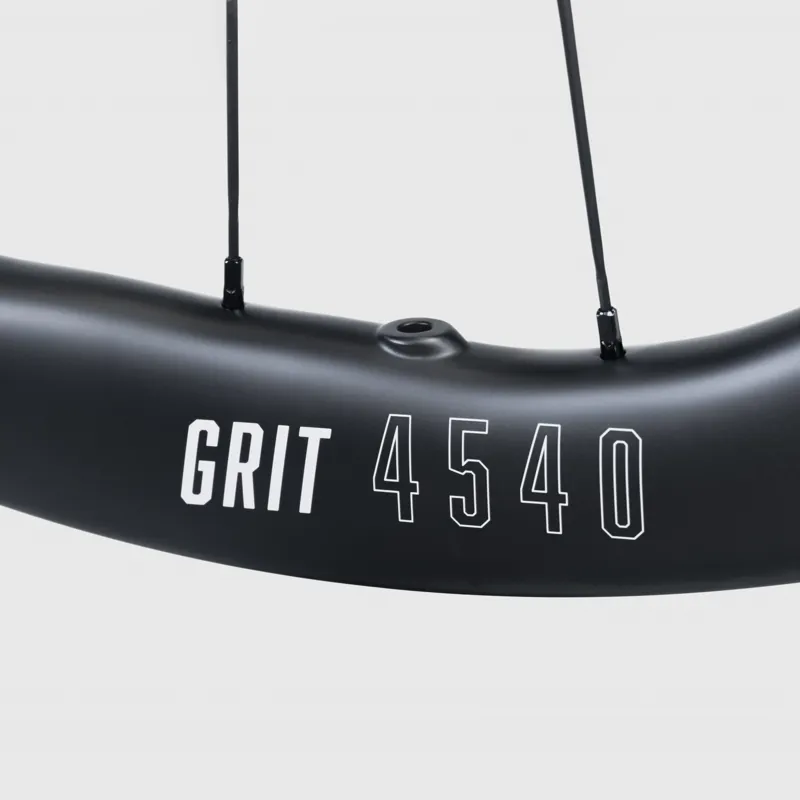

GRIT 4540 EVO — The aero gravel race / All-Road wheel. Depth waves between 40mm and 45mm, 385g rim, designed for wide modern road tyres on Endurance bikes, and 40–48mm gravel tyres. The deep-for-gravel profile combined with RSL is a deliberate bet that gravel racing rewards aero gains; competitors are mostly building shallower gravel wheels. Ideal for gravel racing on fast, flat-to-rolling terrain.

PEAK 4550 EVO — The all-round race wheel. Depth waves between 45mm and 50mm, 420g rim, 21mm internal width. The default modern road wheel — deep enough for aero, shallow enough to climb, with RSL providing the structural balance that makes it confidence-inspiring under all conditions. For all-round road racing, criteriums, mixed-terrain road events.

DUAL 5550 EVO — The versatile aero wheel. Depth waves between 50mm and 55mm. A step deeper than the PEAK but with the same engineering principles. Sits in the sweet spot between climbing capability and outright aero performance. For all-round racing on flatter terrain, hilly triathlon, rolling-profile gran fondos.

WAKE 6560 EVO II — The UCI-legal aero specialist. Depth waves between 60mm and 65mm, exactly at the new UCI 65mm limit. 22mm internal, 420g rim, claimed 1,250 g system weight in the lightest (Tactic TR01 v2) build. Princeton's marketing claim: the fastest UCI-legal road wheel they've ever tested. RSL is particularly valuable here because deeper rims have larger tension imbalances by default — the WAKE benefits most structurally from the patented lacing. For pro/elite road racing, flat-course triathlon, UCI-regulated TT.

MACH 7580 EVO — The non-UCI-legal aero monster. Depth waves between 75 mm and 80 mm. Beyond UCI legal limits, so only available for disciplines without depth restrictions. For triathlon (Ironman, 70.3), non-UCI time trials, ultra-aero training.

BLUR (633 V4) — The rear disc. Full disc rear wheel for TT and triathlon, ceramic bearings, Tactic Racing internals. Disc and rim brake versions available. Not on the EVOLUTION platform because the disc rear has its own structural requirements. For time trials and triathlons where disc rears are permitted.

MACH TSV2 — The tri-spoke front. Three-blade front wheel for TT and Tri, 21mm internal hooked tubeless tyre bed, 925g front wheel weight, ceramic bearings with Dicronite-coated Tactic Racing internals. Claimed 6% aerodynamic efficiency improvement over the original TS across -20° to +20° yaw. For TT and Tri specialists pairing with the BLUR rear, especially on crosswind-exposed courses.

Princeton ships every wheel with lightweight, aero spokes and offers a curated selection of premium hubs. Weights below are for a Peak 4550 EVO wheelset (disc brake) to enable direct comparison.

Tactic Racing TR01 v2 (Princeton's in-house premium hub) — 1,275g. Princeton's vertically integrated hub, with a claimed disc-brake pair weight of just 215g (151g rear, 64g front) — about 65g lighter than DT Swiss 180. Uses the ConicalFace Gear driver mechanism: a sliding ratchet ring on the inboard side engages a ratchet face machined directly into the aluminium freehub body. 8° engagement. Lightest option, aero-tuned for Princeton rims specifically.

Tactic Racing TR02 v2 — 1,350g. Heavier, more affordable version of the TR01 using the same ConicalFace Gear principle with more conservative weight optimisation. Positioned as the everyday Tactic option.

DT Swiss 180 EXP — 1,345g. Premium hub using Star Ratchet EXP — a single-piece design with 36 engagement points (10° engagement). Decades-refined reliability, easy service, consistent performance. Marginally heavier than the Tactic TR01 but the longest field-proven track record of any hub offered.

DT Swiss 240 — 1,370g. One tier below the 180, same Star Ratchet EXP mechanism in a heavier shell with standard bearings. DT's workhorse premium hub for over two decades. Slight weight penalty versus 180 EXP, but cheaper to service.

Chris King R45D Ceramic — 1,460g. Character pick. Chris King's RingDrive engagement — 72 engagement points (5° engagement), the highest in this comparison — with the signature audible buzz. Hand-built in Portland, Oregon, with renowned lifetime serviceability. Ceramic bearings offer marginal friction reduction. Heaviest by a meaningful margin, but the build quality, longevity, and engagement feel, justify it for owners who keep wheels for a decade.

White Industries CLD — 1,480g. Heritage pick and cheapest option. Hand-built in Petaluma, California, with 48 engagement points (7.5° engagement) and customisable colour options. Heaviest in the comparison, but arguably the most beautiful hub aesthetically and one that ages exceptionally well (beware service back up though!)

Choosing between them. If race-day performance is the priority, the Tactic Racing TR01 is the right answer — lightest, fast engagement, and aero-integrated with Princeton's own rims. For a long-term durability bet with global service availability, DT Swiss 180 EXP or 240 are the safer picks. For owners prioritising character, hand-built provenance and lifetime serviceability, Chris King and White Industries are the heritage options at a 100–200 g weight penalty. The full weight range across all five options is about 205 g — meaningful, but not transformative on a complete bike build.

Princeton's commitment to a single integrated engineering thesis — wave profile, RSL, holeless bed, EVOLUTION layup — is unusual in the modern wheel industry, where most premium brands compete by iterating across dozens of small refinements. Whether RSL specifically delivers a measurable advantage versus the best traditional cross-laced wheels with conventional spoke tensioning is still being independently tested, but the engineering logic is sound: tension imbalance in disc-brake wheels is a real structural problem, and RSL is a credible mechanical solution. For riders who value engineering coherence as much as outright performance — and don't mind paying for it — the Princeton range is one of the few wheel lineups in the market where every wheel shares the same underlying technical thesis from the lightest climber to the deepest TT specialist.


With so many options with Hubs and colours - there are a huge number of products in the range. We have broken them down into wheel model Collections - each is then broken down by colour and hub options.
Pro tip - Either filter by your favourite colour, and choose your hub. Or, if you know what hub you want but colour is in the balance, use the 'Type to Filter' to type your hub choice in, to be presented with the colours side by side.

---
