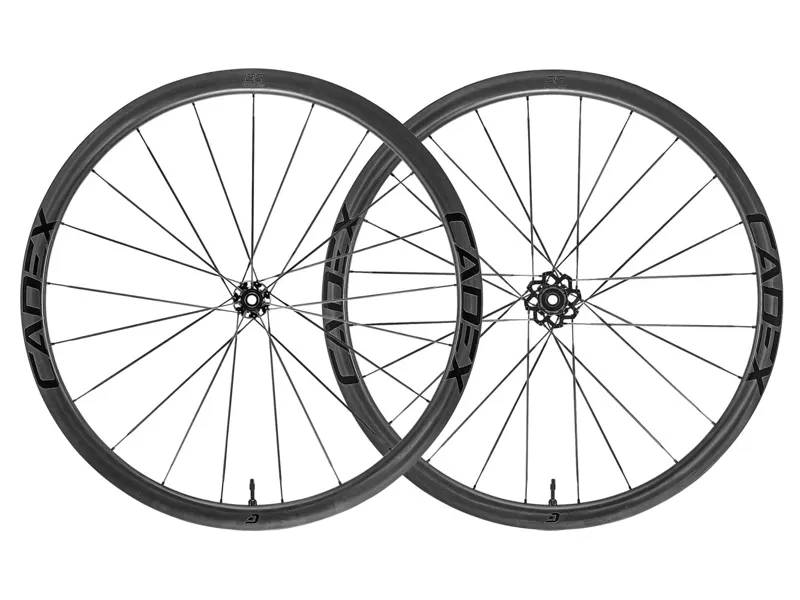

CADEX AR 35 Hookless Carbon GRAVEL Wheels : DISC

Season:2022

Brand:Cadex

Code:CADEX35AR

As the Gravel and All-Road market begins to swell, it was inevitable that CADEX would deliver a serious contender for your off-road forays. Like the road range before it, the Cadex AR35 represents the 'pinnacle performance product' that is the comapny's guiding principle.

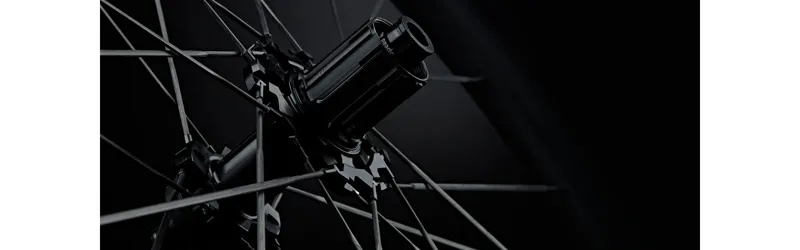

Much of the development of the AR 35 centres around the hub. Understandable since the hub will be seeing conditions a little tougher than those generally experienced on the road. The AR 35 WheelSystem sees two breakthrough improvements in hub technology over the previous generation CADEX wheels. The R2-C60 rear hub features an all-new, CADEX-exclusive R-Drive 60-tooth ratchet freehub and flattened coil spring that combine lightweight speed, durable efficiency and instant engagement.

To enhance the durability, the hub internals are anodized and a redesigned anti-dust cover provide for maximum longevity. This durability is matched by performance too. Like the recently released CADEX 36 road wheels, the AR 35's are built not only for strength but for performance. To this end, the hubs feature the new CADEX Cermaic bearings. Ultrahard for resiliance over time, they also roll 1.5 x smoother than steel, helping to deliver all your power to the trails.

Further to the rear hub revisions, an integrated front hub design reinforces axle support and eliminates play by replacing the standard end cap, bearing and bushing interface with an integrated axle running the length of the hub. This increased thru-axle support boosts the lateral stiffness of the entire structure - ideal for rugged terrain and uneven surfaces where hub stability is essential to control.

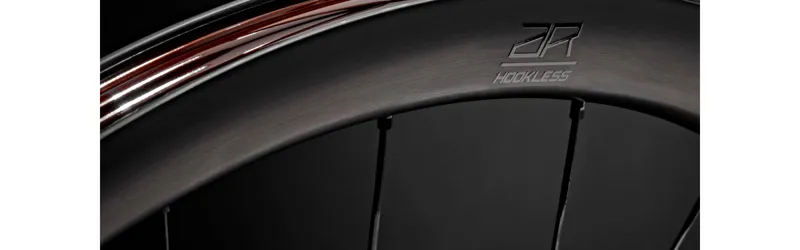

A signature of the CADEX wheel range is their market leading hookless bead and precision reinforced carbon lay-up that focuses fibre at critical areas of stress and removes it where excess is not required. Both elements help create an exceptionally strong structure with best-in-class weight. In fact, the AR 35 Disc have the same impact resistance as an XC Mountain bike wheel but weigh just 1270g for the pair!

The modern 25mm inner rim width combines with the hookless bead to deliver optimal tyre performance. By creating a rounder, more uniform tyre shape that increases sidewall support for cornering and creates a wider, shorter contact patch; the AR 35 minimise rolling resistance and improve impact absorption for a smoother ride quality. The rim width also better supports high volume 28-45mm road and gravel tyres, allowing for lower pressures and more confident handling in variable conditions.

Like the complete range of CADEX hoops, the new AR 35 feature CADEX's proprietary Dynamic Blanced Lacing for their high-tensile Carbon spokes. Race-proven Dynamic Balanced Lacing (DBL) technology varies tension not only between drive and non-driveside spokes, but within the drive side itself. This ensures spokes are set for optimal tension when under dynamic pedalling force versus when static, resulting in superior transmission stiffness and efficiency.

All in, the CADEX AR 35 All-Road / Gravel wheels deliver everything you need in a relaible, efficient and performance focused wheel system that is built durable enough for the rigours of off-road, but with the agility and swiftness of the best road wheels. Light, stiff, fast - everywhere.




AR / Gravel Range | Effort In. Speed Out.

  • €1,298.85
    EUR
  • $1,774.01
    AUD
  • $1,584.79
    CAD
  • $1,950.38
    NZD
  • $1,158.43
    USD
  • CHF1,047.28
    CHF
  • kr15,137.32
    SEK
  • kr162,828.93
    ISK
  • kr9,690.20
    DKK
  • kr12,787.65
    NOK
  • ¥183,141.55
    JPY
  • NOTE : Since Cadex and Giant are manufactured by the same company (Giant), the following CADEX buyer's guide also holds true for Giant's new Hookless Road Wheels (2021 Onwards)

    Like any modern tubeless system, the tolerances of the tyre bead diameter and hookless rim bead seat diameters must be carefully calibrated in order to create an airtight seal that will allow the tyre to stay on the rim and the rider to slow to a safe stop in case of puncture. If the tyre bead diameter is too large, it will not match the rim bead seat diameter. Likewise, if the bead material isn’t strong or stiff enough under high pressure loads, the tyre bead will stretch over time and it will lose its original diameter.
    If rim manufacturers do not work directly with tyre manufacturers when designing new hookless rims, tolerances and bead materials can vary. This can make it difficult to pair tyres and hookless rims from different manufacturers.
    WHAT SETS CADEX APART?
    Rather than using a Kevlar-only bead, which can stretch over time and compromise the tyre bead diameter, CADEX / GIANT tyres feature a carbon and Kevlar composite bead that’s strong enough to avoid stretching under heavy loads. This, combined with accurately defined tyre and rim bead seat diameters, tested at pressures up to 150psi, guarantee dependable air and tyre retention.
    WHAT PRESSURE AND TYRES CAN I USE?

    TYRE PRESSURE
    No matter the type of rims or tyres you are using, never exceed the maximum pressure stated on the rim or tyre. Always follow the lower of the two maximum recommended pressures.
    TYRE COMPATIBILITY
    CADEX tubeless tyres are always the best match for CADEX Tubeless WheelSystems as they are designed in tandem. However, should you choose to use a non-CADEX tyre, there is a CADEX approved list of tyres that have been tested to be 100% compatible with CADEX rims.
    At the time of writing (16/03/22) the list is restricted to Giant Gavia tyres and of course Cadex's own Race tyre range. which are exceptional - as well as a select few others that can be viewed using the link above.

    For tyres not on the CADEX Approved Tyre List, CADEX are working continually with manufacturers so updates can be made to approve them. However, be aware that if you choose to use a tyre that is not on the CADEX Approved Tyre List, you do so at your own risk, and we cannot guarantee that the tyre will function correctly and safely with the CADEX Tubeless WheelSystem featuring a hookless bead.
    WHAT TYRES SHOULD I NOT USE?

    The following tyres have failed the CADEX test protocol and currently do not function properly with CADEX hookless WheelSystems:

    VITTORIA RUBINO PRO TLR 25C

    VITTORIA CORSA TLR 25C

    CONTINENTAL GP5000 TL 25C
    (Please note that the Continental GP5000 S TR tyre is apt for use on hookless rims and is a different tyre from the previous generation Continental GP5000 TL tyre. Please also note that as per Continental's specifications on rim inner width, the Continental GP5000 S TR in size 700x25C is only apt for use on the CADEX 42 and CADEX 42 Disc WheelSystems)

    PIRELLI CINTURATO 24C 26C


    For tyres that have failed the CADEX test protocol, CADEX is working with the tyre brands so updates can be made to make them ready for CADEX hookless rims as soon as possible.

    Please be aware that if you choose to use a tyre with an indicated maximum pressure above 72.5psi (5 bar) that is not on the list of tyres that have passed the CADEX test protocol, YOU DO SO AT YOUR OWN RISK, as the tyre may not function properly with the CADEX hookless WheelSystem.

    If the maximum pressure indicated on the sidewall of the tyre is below 72.5psi (5 bar) and the tyre is hookless rim compatible as per the tyre manufacturer’s recommendation, the tyre can be used with CADEX hookless WheelSystems and does not have to appear on the “WHAT TYRES CAN I USE?” chart.
    If necessary, you may use an inner tube on a CADEX rim, so long as the tyre you are using is on the CADEX Approved Tyre List. However, please note that CADEX rims are designed to perform best when set up as tubeless and used without an inner tube.
    Technical Information
    • Hookless rim technology offers XC-level impact resistance by providing a more consistent carbon fiber structure at the rim wall. It also creates a
      rounder tyre shape for better grip and sidewall support when cornering.
    • Precision reinforced carbon lay-up places carbon fiber only where needed, creating a super strong and lightweight rim.
    • 25mm inner width and hookless rim construction offer a shorter, wider tyre contact patch for reduced power loss and increased impact absorption.
    • A wide inner width supports higher volume 28–45mm road and gravel tyres, allowing lower tire pressures and more confident handling.
    • High-tensile-strength, ultralight CADEX carbon spokes and precision reinforced carbon lay-up combine for class-leading stiffness-to-weight.
    • Custom tuned Dynamic Balanced Lacing (DBL) technology sets spokes at a wider bracing angle and evens out tension under pedaling force, producing
      a stiffer, more efficient wheel with outstanding power transfer.
    • CADEX ceramic bearings offer 1.5x smoother action than steel.

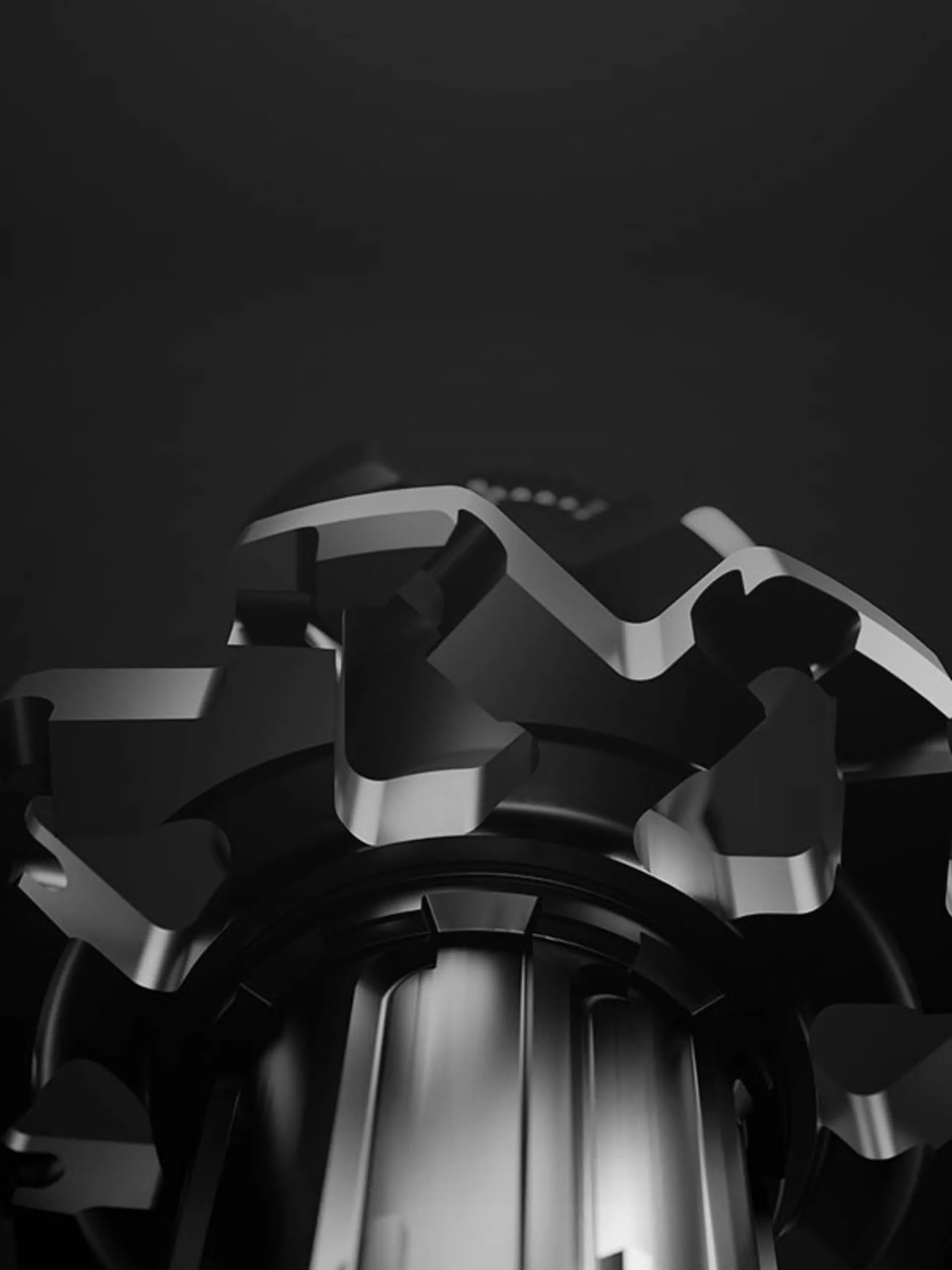

    • Lightweight CADEX R2-C60 hub with R-Drive features a DLC 60-tooth ratchet driver, durable flat spring and redesigned dust cover for instant engagement and long-lasting efficiency.
    • Integrated front hub design reinforces axle support and eliminates play by replacing end cap, bearing and bushing interface with an integrated
      axle running the length of the hub.

    Rim MaterialCarbon
    Rim TypeHookless Clincher
    TubelessCADEX Tubeless System (rim tape and valve included)
    Suggested Tire Size700 x 28C – 700 x 45C
    Rim Height35mm
    Rim Outer Width31mm
    Rim Inner Width25mm
    ETRTO622-25
    Front HubCADEX R2-C60 Hub, Centerlock
    Rear HubCADEX R2-C60 Hub, 60T Ratchet Driver, Centerlock
    Freehub SystemR-Drive
    Hub CompatibilitySRAM XDR / SHIMANO HG / CAMPAGNOLO N3W
    BearingCADEX Ceramic Bearings
    Front Axle100x12 Thru Axle
    Rear Axle142x12 Thru Axle
    Spokes (Front)Aero Carbon Spoke
    Lacing (Front)21H
    Spokes (Rear)Aero Carbon Spoke
    Lacing (Rear)24H
    Nipple TypeAlloy
    Warranty2 Years
    Incident Replacement5 years (registered original owner)
    Weight (Pair)1270g
