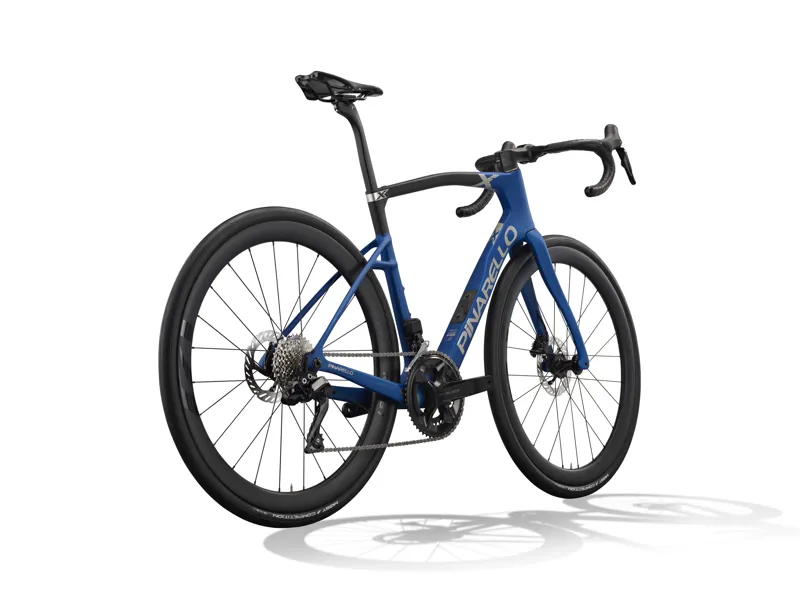

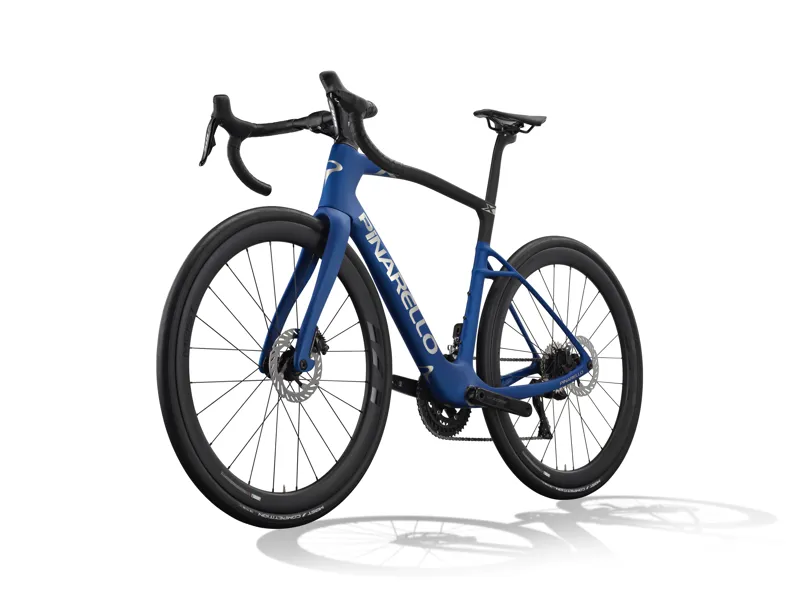

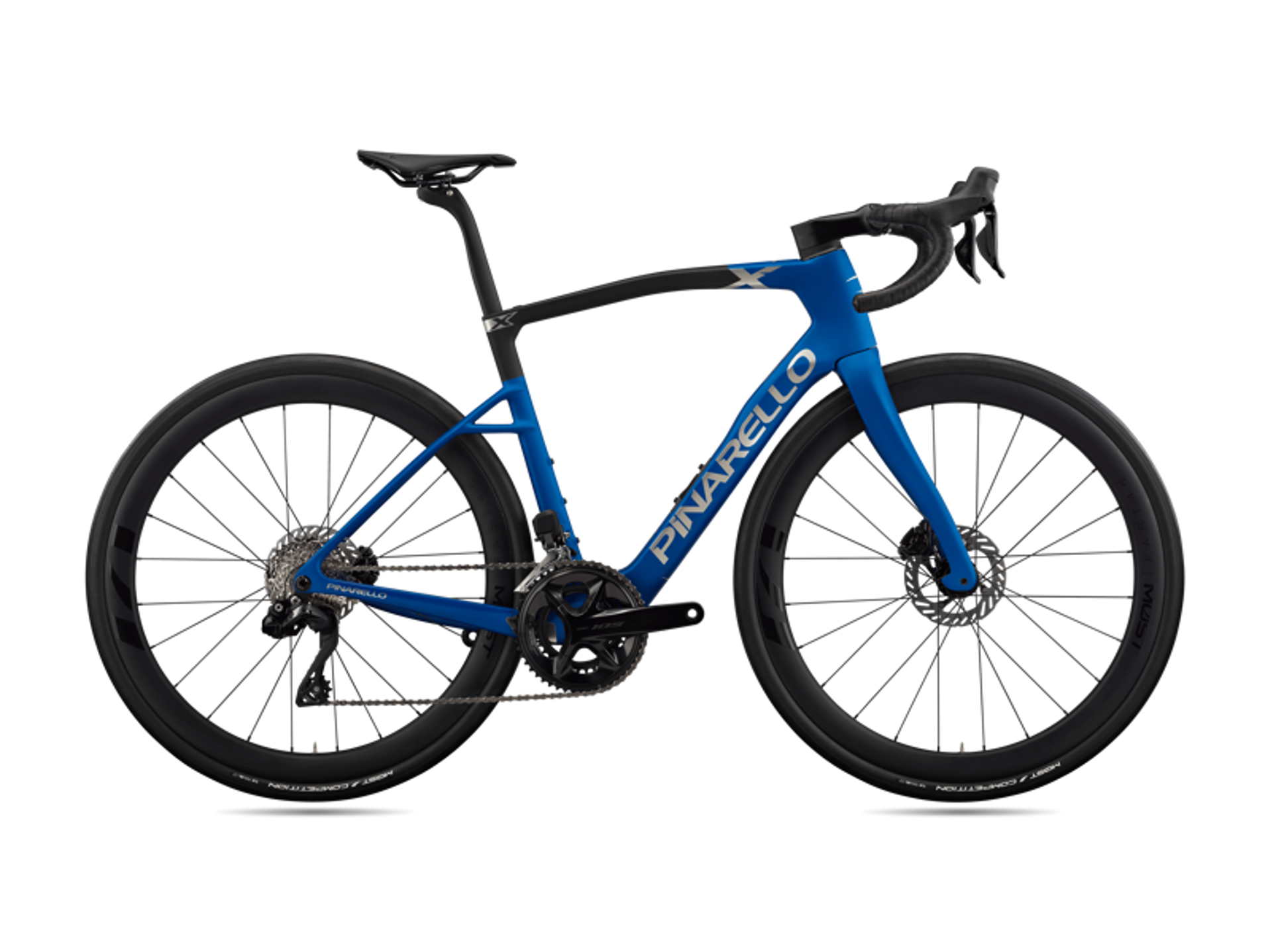

The Pinarello X5 employs a T700UD carbon frame fitted with Shimano 105 Di2 and Most UF45 carbon wheels. T700 holds onto the liveliness while damping more of what the road sends up, and carbon rims are the upgrade most riders make first, so having them fitted from the start changes how the bike accelerates and how it holds speed once you are there. Electronic shifting, the full frame technology and the Claw cockpit, with a wheelset you will not be looking to replace. For most riders this is the one that makes the most sense.
Pinarello built the X Series around roads as they actually are, which for most of us means patched tarmac, a gravel connections between lanes, and the occasional surface that falls apart halfway down a descent you are already committed to.
Their case for it rests on fatigue rather than comfort, and it is the better argument. Four hours of vibration coming up through the bars and the saddle leaves you slower than you would otherwise be, and it takes its toll on concentration long before it takes anything from your legs, which is why the last hour of a long ride is where most of us lose our lines and brake later than we meant to. Arrive at that hour fresher and you are still riding properly when everyone else has faded.
Two elements do the work here, and Pinarello designed them as a pair rather than as separate features.
X-Stays 2.0 is the second generation of the split seatstay arrangement, with four connection points where a conventional pair of stays gives two, and a lower attachment to the frame than the design it replaces. Spreading the load across four points disperses vibration instead of channelling it straight into the saddle, and the lower linkage damps the rebound that follows a sharp hit, so the back of the bike settles after a pothole rather than pattering for the next few metres.
The Adaptive seatpost was drawn for this frame specifically, shaped to give where giving helps and to stay put where it does not. What you feel is simple enough: you stay planted on the saddle over rough ground, and a rider who is not being bounced can keep putting power down rather than spending a fraction of every stroke staying aboard. Neither part costs you anything in pedalling efficiency, which was the point of designing them together.
You can fit tyres up to 40mm wide, which is a lot of room on a road frame and changes what you can ask of a tubeless setup. Run 32s or 35s at a pressure chosen for the surface rather than for tradition and you get grip, absorption and cornering confidence a 28 cannot give you, with the added benefit that the road stops reaching you in the first place.
It also changes where you can go. That gravel link that would shorten your loop stops being a reason to turn around.
Every hose and cable on this bike runs inside the bar, stem and frame, as Pinarello have done for years under the name TiCR. The usual price for that tidiness is a wide head tube, because the lines run down either side of the steerer and the frame has to be built around them.
e-TiCR changes the layout to avoid paying it. The steering tube is elliptical rather than round, the cables sit in front of the steerer instead of beside it, and the headset uses a larger bearing at the bottom than the top so that size stays where the steering loads actually are. The front of the bike gets narrower and cleaner without the steering giving anything up, and there is nothing on show to snag a bag strap or collect road grime.
The cockpit is built around that head tube rather than bolted onto it. The X7 runs the MOST Talon Ultra Fast, the same one-piece Pinarello fit to the F7, and the three bikes below it use the Claw bar and stem, the two-piece cockpit from the current F Series designed for e-TiCR, which keeps the routing completely internal while letting you change stem length or bar width on their own. Two-piece here is a fit decision rather than a downgrade, and for a rider still settling a position it is arguably the more useful of the two.
A sealed compartment sits inside the down tube with a toolbag shaped to slide into it, divided for a CO2 cartridge, tyre levers, a TPU tube, a mini pump and a chuck. Everything you would otherwise spread across three jersey pockets or a saddlebag rides inside the frame instead, out of the wind and off your back.
Reach is shorter and stack taller than you will find on a race bike, so you sit with your chest open and with less weight running down through your hands and wrists. It is a position that still feels efficient at hour five, which is the only test that matters on a long day.

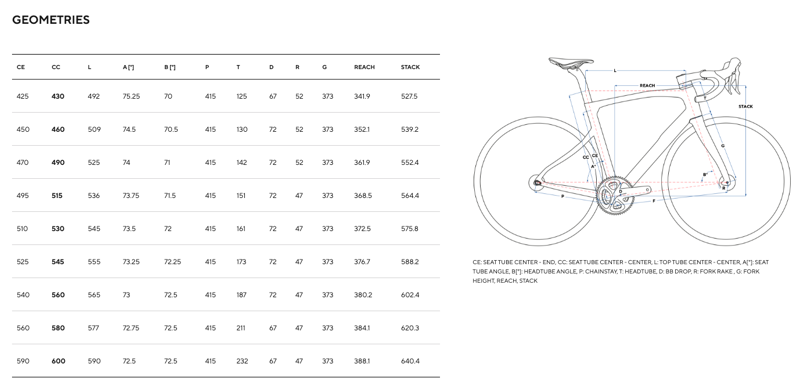

Nine sizes cover riders from small to very tall, and the frame keeps its manners across all of them: chainstay length is identical on every size, and fork rake steps to suit the smaller frames so that a 42cm handles like a 59cm rather than like a different bike altogether.
The rear dropout takes both SRAM's UDH standard and Shimano's current and future fitments, which keeps a future groupset change a matter of components rather than frames, and makes a replacement hanger something any good shop can hand you rather than something ordered in and waited for.
Every X-Series frame shares a mould, a geometry, X-Stays 2.0 rear end, Adaptive seatpost and 40mm of clearance. What changes as you move up is the grade of carbon and what hangs off it, which means the rider on the entry bike gets the same shape and the same fit as the rider on the one at the top, and can spend the difference on wheels later if they want to.
The range also mirrors the F Series tier for tier at matching prices, so if you already know where you would sit on an F, the equivalent X is the same money spent on a bike built for different roads.
